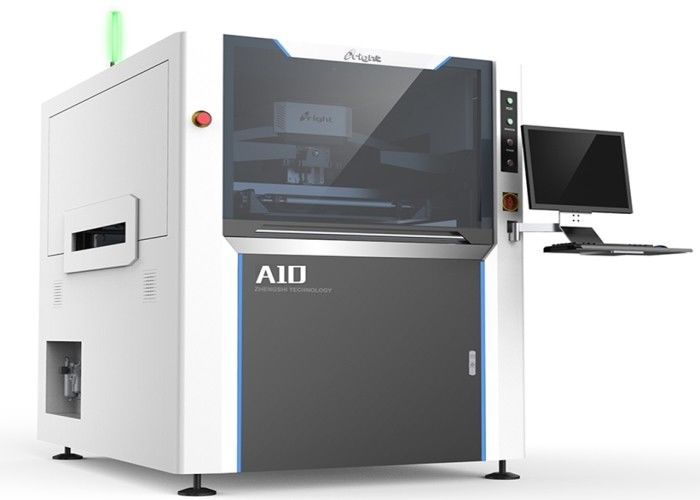

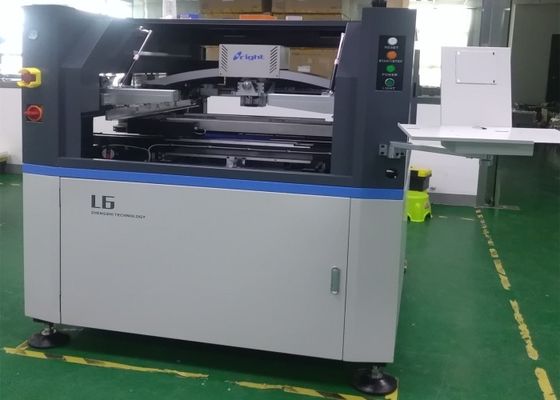

High Precision SMT Solder Paste Printer Smartphone Motherboard Use

High Precision SMT Solder Paste Printer Smartphone Motherboard Use

High Precision SMT Solder Paste Printer Smartphone Motherboard Use
High Precision SMT Solder Paste Printer Smartphone Motherboard Use High Precision SMT Solder Paste Printer Smartphone Motherboard Use High Precision SMT Solder Paste Printer Smartphone Motherboard Use High Precision SMT Solder Paste Printer Smartphone Motherboard Use

Large Image :  High Precision SMT Solder Paste Printer Smartphone Motherboard Use Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: A10

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Packaging Details: wooden package
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Solder Paste Screen Printer Printing Precision: 0.0125mm Cpk>1.66
Weight: 1000KG Power Supply: 220V
Customize: Yes Printing Area: 400*340mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Sub Board Size: 700*700 Selling Units: Single Item
Dimensions: 1220(L)X1355(W)X1500(H)mm Package Type: WOODEN BOX PACKAGE
Repeat Position Accuracy: 0.008mm Cpk>1.66
High Light:

solder paste screen printer

,

stencil printer machine

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 0

Full automatic high precision smt solder paste printing machine, stencil printer machine for smart phone mother board

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 1



SMT pick and place machine

Machine specification parameters



Model A5
Item



Screen Frames



Min Size 470×370mm
Max Size 737×737mm
Thickness 25~40mm
PCB Min Size 50×50mm
PCB Max Size 400×340mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/s(Programmable)

Board Location

PCB The positioning

Support System Magnetic Pin/Up-down table adjusted/support block

Clamping System



Side clamping,vacuum nozzle



Printer Head Two independent motorised printhead
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15kg
Squeegee Angel 60°/55°/45°
Squeegee Type

Stainless steel(standard),plastic



Stencil Separation Speed 0.1~20mm/sec (Programmable)
Cleaning System Dry ,Wet,Vacuum (Programmable)
Table Adjustment Ranges X:±10mm;Y:±10mm;θ:±2°
Machine
Repeate Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s(Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6kg/cm2
Power Input AC:220±10%,50/60HZ1F3KW
Control Method PC Control
Machine Dimensions 1220(L)×1355(W)×1500(H)mm
Machine Weight Approx:1000kg



Second, the characteristics


Scraper system

* Arch type suspension hanging straight squeegee

* Programmable floating self-adjusting stepper motor to drive print head

* Two-wheeled sliding rail type structure with double-slider to ensure the accuracy and smoothness of the front and rear operation
* Designed for the different front and rear blade pressure requirements and the stability of the lifting, to prevent the solder paste from leaking and the blade has a certain elastic clamping design, the blade pressure, lifting speed, printing speed, printing range are software adjustable, and Providing customers with a variety of demolding methods to adapt to different PCB requirements, providing customers with a good printing control platform;
* Slide type scraper system to improve running stability and extend service life;

Full-closed blade pressure feedback device, constantly monitoring the size of the blade pressure, making the tin more full;

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 2




2. Steel mesh positioning system

Large and small steel mesh, good and wide applicability

The imported SMC cylinder is used as the pressure steel mesh cylinder.

Embedded scale, never fall off

Segmented fixed steel mesh frame

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 3



3. Image and optical path system

The X and Y axes are made of Japanese Kuroda high-grinding screw rods, driven by Japanese Panasonic motors at both ends.

Internally add polarizers to automatically and accurately capture MARK points of different shapes

Upper, lower and coaxial three-way uniform light source

Using Toshiba Industrial Camera

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 4


4. PCB transportation and positioning system

Freely select the direction of the board, free to combine

Special craft internal tooth transport belt to prevent card board

Programmable transport speed control for more precise stoppage

Adoptive side clamps and vacuum suction chambers, effectively clamping the PCB to ensure complete flat contact between the PCB and the steel mesh.

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 5




5. Cleaning system

Spray cleaning method

Dry, wet, vacuum wash any combination

Separate cleaning structure

Arc cleaning strip

Washing liquid, and steel mesh cleaning paper can be controlled

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 6



6. Platform calibration system

UVW platform structure, high precision, high rigidity, compact structure

Three-axis linkage, small size and high precision

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 7



7. Base and rack system

Solid shape

Panasonic motor plus Japanese original high-precision grinding screw

High rigidity, high stability left and right symmetrical frame structure

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 8



8. Electrical circuit system

Safe and simple circuit air circuit arrangement

The circuit air path is erected to discharge both sides and the rear of the machine for easy maintenance.

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 9



9. Operating system

Easy-to-learn and easy-to-use user-friendly interface with good human-machine dialogue

Do program files with teaching and navigation functions, prompts at each step

Chinese and English one-button switching

With operation log, fault record analysis and other functions

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 10



10. Other function options

Automatic dispensing function

Automatic scan code function

Automatic tinning function

Closed loop control

Constant temperature and humidity function

Steel mesh plugging function

Other functions can be customized according to the actual needs of customers

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 11High Precision SMT Solder Paste Printer Smartphone Motherboard Use 12

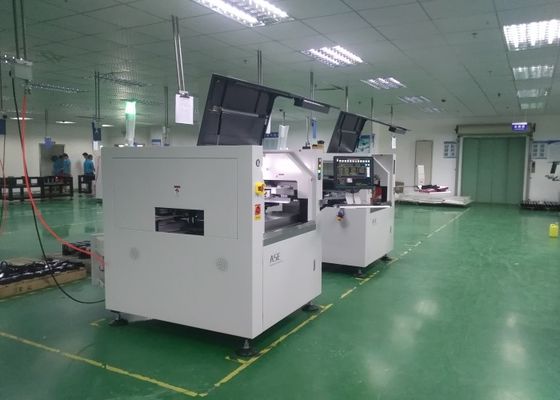

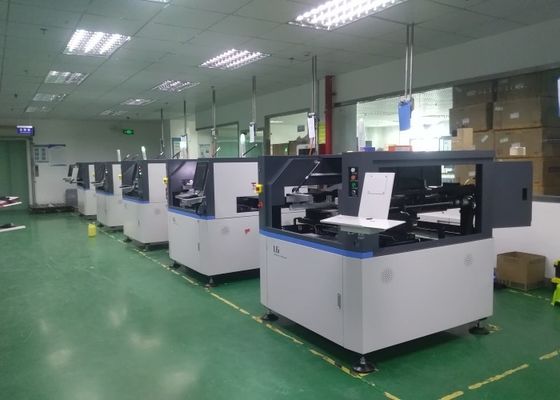

 Factoty picture and customer site.

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 13



High Precision SMT Solder Paste Printer Smartphone Motherboard Use 14



High Precision SMT Solder Paste Printer Smartphone Motherboard Use 15



High Precision SMT Solder Paste Printer Smartphone Motherboard Use 16









High Precision SMT Solder Paste Printer Smartphone Motherboard Use 17

High Precision SMT Solder Paste Printer Smartphone Motherboard Use 18



High Precision SMT Solder Paste Printer Smartphone Motherboard Use 19



High Precision SMT Solder Paste Printer Smartphone Motherboard Use 20

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.



2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.



3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
