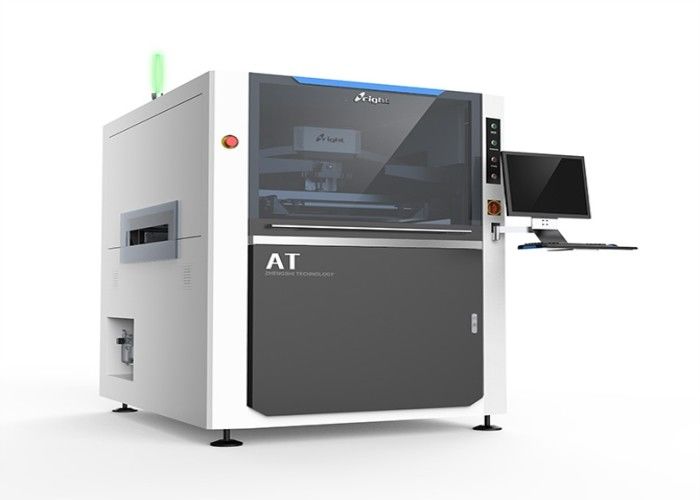

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

I'm Online Chat Now

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

China Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board supplier
Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board supplier Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board supplier Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board supplier Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board supplier

Large Image :  Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: AT

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Packaging Details: wooden package
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Solder Paste Screen Printer Printing Precision: 0.015mm
Weight: 1200KG Power Supply: 220V
Customize: Yes Printing Area: 400*340mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Sub Board Size: 700*700 Selling Units: Single Item
Dimensions: 1220(L)X1355(W)X1500(H)mm Package Type: WOODEN BOX PACKAGE
Repeat Position Accuracy: 0.007mm

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

Fully automatic high precision smt solder paste printing machine, stencil printer for TV computer mother board

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

SMT pick and place machine

Machine specification parameters



Model

AT
Item
Screen Frames Min Size 470X370mm
Max Size 737X737mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 510X510mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location
PCB
Support System Magnetic Pin/Up-down table adjusted/supportblock
by hand Magnetic thimble / adjustable jacking platform / contour block
Clamping System side clamping,vacuum nozzle,
Print head Two independent motorised printheads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy ±0.007mm
Printing Accuracy ±0.015mm
Cycle Time <8s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1530(W)X1500(H)mm
Machine Weight Approx:1200Kg



Second, the characteristics


Scraper system

* Arch type suspension hanging straight squeegee

* Programmable floating self-adjusting stepper motor to drive print head

* Two-wheeled sliding rail type structure with double-slider to ensure the accuracy and smoothness of the front and rear operation
* Designed for the different front and rear blade pressure requirements and the stability of the lifting, to prevent the solder paste from leaking and the blade has a certain elastic clamping design, the blade pressure, lifting speed, printing speed, printing range are software adjustable, and Providing customers with a variety of demolding methods to adapt to different PCB requirements, providing customers with a good printing control platform;
* Slide type scraper system to improve running stability and extend service life;

Full-closed blade pressure feedback device, constantly monitoring the size of the blade pressure, making the tin more full;



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board




2. Steel mesh positioning system

Large and small steel mesh, good and wide applicability

The imported SMC cylinder is used as the pressure steel mesh cylinder.

Embedded scale, never fall off

Segmented fixed steel mesh frame



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



3. Image and optical path system

The X and Y axes are made of Japanese Kuroda high-grinding screw rods, driven by Japanese Panasonic motors at both ends.

Internally add polarizers to automatically and accurately capture MARK points of different shapes

Upper, lower and coaxial three-way uniform light source

Using Toshiba Industrial Camera



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board


4. PCB transportation and positioning system

Freely select the direction of the board, free to combine

Special craft internal tooth transport belt to prevent card board

Programmable transport speed control for more precise stoppage

Adoptive side clamps and vacuum suction chambers, effectively clamping the PCB to ensure complete flat contact between the PCB and the steel mesh.



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board




5. Cleaning system

Spray cleaning method

Dry, wet, vacuum wash any combination

Separate cleaning structure

Arc cleaning strip

Washing liquid, and steel mesh cleaning paper can be controlled



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



6. Platform calibration system

UVW platform structure, high precision, high rigidity, compact structure

Three-axis linkage, small size and high precision



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



7. Base and rack system

Solid shape

Panasonic motor plus Japanese original high-precision grinding screw

High rigidity, high stability left and right symmetrical frame structure



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



8. Electrical circuit system

Safe and simple circuit air circuit arrangement

The circuit air path is erected to discharge both sides and the rear of the machine for easy maintenance.



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



9. Operating system

Easy-to-learn and easy-to-use user-friendly interface with good human-machine dialogue

Do program files with teaching and navigation functions, prompts at each step

Chinese and English one-button switching

With operation log, fault record analysis and other functions



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



10. Other function options

Automatic dispensing function

Automatic scan code function

Automatic tinning function

Closed loop control

Constant temperature and humidity function

Steel mesh plugging function

Other functions can be customized according to the actual needs of customers



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother BoardFully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

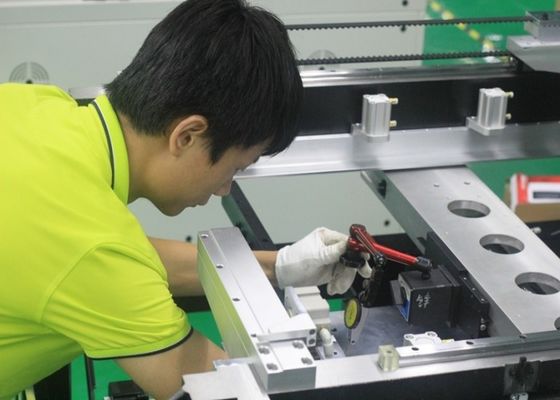

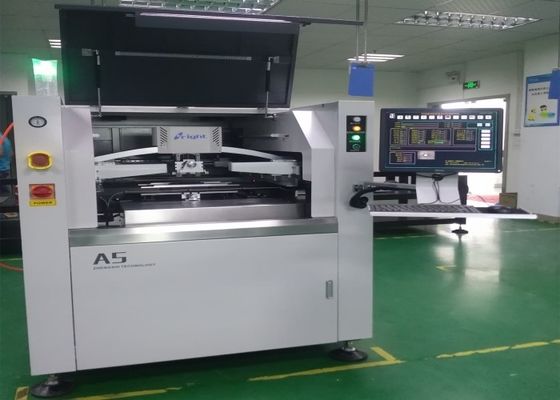

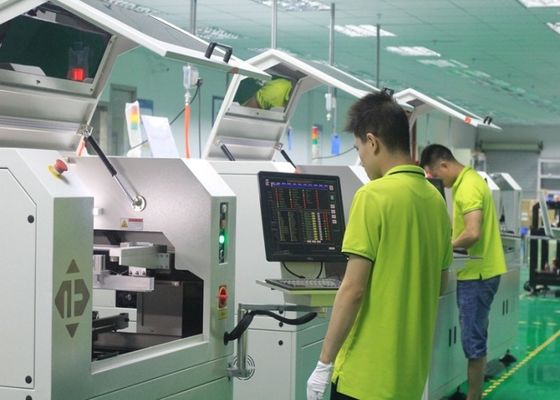

 Factoty picture and customer site.

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board









Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board



Fully Automatic Solder Paste Printer High Precision For TV / Computer Mother Board

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.



2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.



3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
