1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light
1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light

Large Image :  1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOSST
Model Number: 1068L

Payment & Shipping Terms:

Minimum Order Quantity: 1-4 Pieces
Price: discuss price
Detailed Product Description
Product Name: Solder Paste Screen Printer Printing Precision: 0.02mm
Weight: 360KG Power Supply: 220V
Customize: Yes Printing Area: 1600*320mm
Warranty: 1 YEAR Air Pressure: 4-7kgf/cm2
Frame Size: 1900*400 Sub Board Size: 1500*320
Selling Units: Single Item Single Package Size : 195X50X185 Cm
Single Gross Weight: 450.0 Kg Package Type: WOODEN BOX PACKAGE
High Light:

solder paste screen printer

,

smt stencil printer

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 0

1.5m semi automatic screen printer stencil printer solder paste printer for LED tube light LED strip light

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 1

SMT pick and place machine

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 2



1.5 meter light strip semi-automatic printing machine



1, Use the servo system for easy and accurate positioning.
2, Imported linear high-speed guide rail and imported speed control motor to drive the scraper seat to ensure printing accuracy.
3, The printing blade can be rotated up to 45 degrees to facilitate the cleaning and replacement of the printing stencil and scraper.
4, The blade holder can be adjusted back and forth to select the appropriate printing position.
5, The combined printing platen has fixed groove and PIN, easy to install and adjust, suitable for single and double panel printing.
6, The school version uses steel mesh to move, combined with printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
7, PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.
8, One-way and two-way, multiple printing methods can be set.
9, With automatic counting function, it is convenient to produce output statistics.
10, The blade angle is adjustable, steel scraper and rubber scraper are suitable.
11, The man-machine interface has a screen saver function to protect the life of the human-machine interface.
12, With a unique programming design, the printing blade holder is easy to adjust.
13, Printing machine speed man-machine interface display, can be digitally adjusted and controlled.


Technical parameters:





The number type

WANBO OLS1068L

Printing machine covers an area

1600 x 320 mm

Frame size

370 * 470 mm, 1900 * 400 mm

Substrate size

600 x 250 mm, 1500 x 300 mm

Base plate thickness

0.2 ~ 2.2 mm

Counter to fine-tune

the Front/Back + 10 mm R/L + 10 mm

The printing accuracy

+ / - 0.02 mm

Machines repeat accuracy

+ / - 0.03 mm

Minimum spacing

0.35 mm

The use of air compressor

4-7 KGF/Cm2

Power

220V 50/60Hz, 100W

Machine size

1950L x 900W x 1650H mm

The machine weighs

360 kg

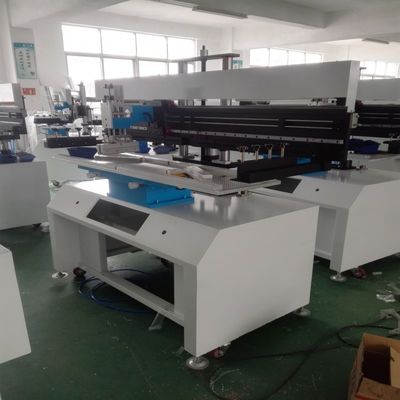

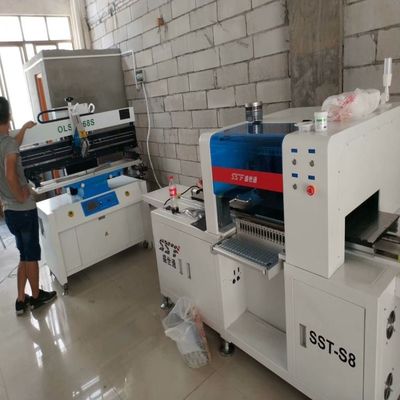

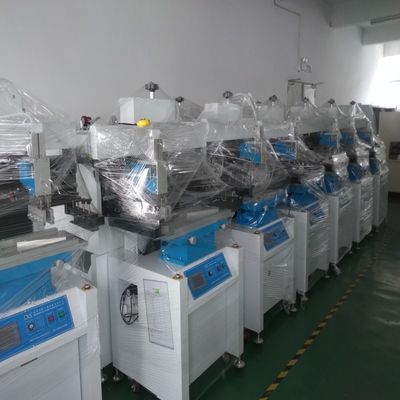

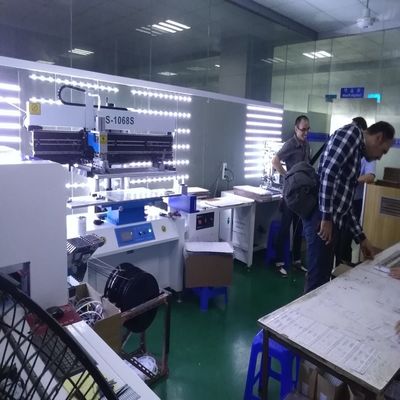

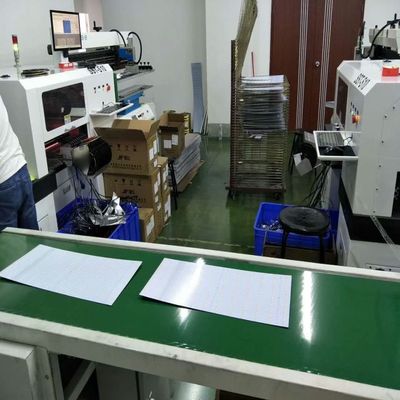

 Factoty picture and customer site.

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 3



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 4



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 5



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 6





1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 7



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 8

Shenzhen Wanbo Hi-tech Co Ltd is specializing in manufacturing TAB bonding machine, ACF bonding machine, LCD screen laser repair machine, soldering station, soldering tips, digital multimeter, adjustable dc power supply, programming electronic load, LCR meter, oscilloscope, lamp mafnifier, smt machine, pick and place machine, reflow oven, solder paste, miscroscope, ultrasonic cleaner, ultrasonic welding machine, assembly line, LED chip packaging machines etc. We have R&D team based in Shenzhen. Our goal is to build perfect world.

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 9

1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 10



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 11



1.5m Semi Automatic Stencil Printer Machine For LED Tube Light / Strip Light 12

1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.



2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.



3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
