Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine

Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine

Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine
Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine

Large Image :  Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine Get Best Price

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: WANBOHITECH
Model Number: WH600M

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: discuss price
Packaging Details: wooden box package
Supply Ability: 100 Piece/Pieces per Week
Detailed Product Description
Name: SMT Stencil Printer Application: Solder Printing, Red Glue Print, Silk Screen Print
Type: Manual Warranty: 3 Months
Applicable Components: 0402~5050 Quality: Precision
Shipping Term: DHL Fedex TNT EMS UPS Item: Desktop Printer
Port: Shenzhen
High Light:

solder paste screen printer

,

stencil printer machine

Manual solder paste printer, red glue SMT stencil printer, silk screen printing station


Features:
1. Plane printing, manual operation.
2. Manual and easy to adjust, easy to operate, accurate and reliable.
3. Large and thin workpiece surface can be printed accurately.

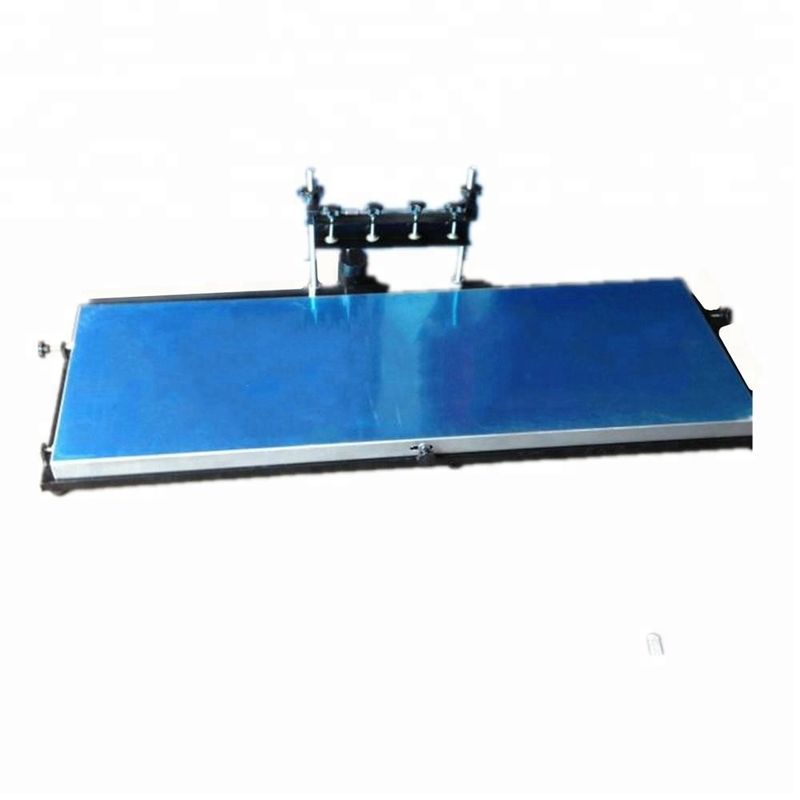

Trumpet Printing Desk
Table area: 240x300mm Weight: 7KG


Medium fingerprint pad
Table area: 320x440mm Weight: 8KG


Large fingerprint pad
Table area: 450x600mm Weight: 16


Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine 0

Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine 1

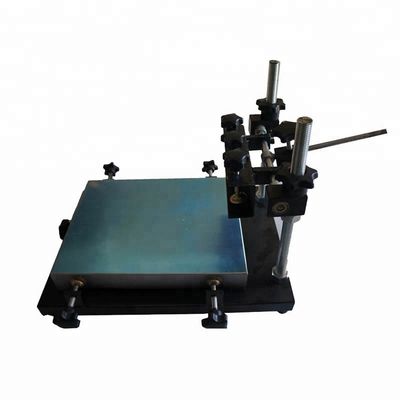

Handprint stands - the most common manual screen printing tool, with simplicity and precision. For manual printing, please clamp the device of the frame with a platform for adjustable placement of the substrate. There are three kinds of standard models, both large, medium and small, with 24*30, 32*44, and 45*60, which are cheap and easy to operate. They are popular products for small factories.
1. Plane printing, manual operation.
2. Manual and easy to adjust, easy to operate, accurate and reliable.
3. With metal frame and exchangeable thin station,
4. It can realize the precision printing of the surface of the workpiece with large and thin area.
Handling precautions: The movable bolts (5 pieces) of the fixed aluminum plate can be adjusted to adjust the position of the printing table (front and rear and left and right); the movable bolts (3-4 pieces) of the adjusting fixture can fix the frame of different heights; The movable bolts (4) adjust the off-grid distance of the frame.

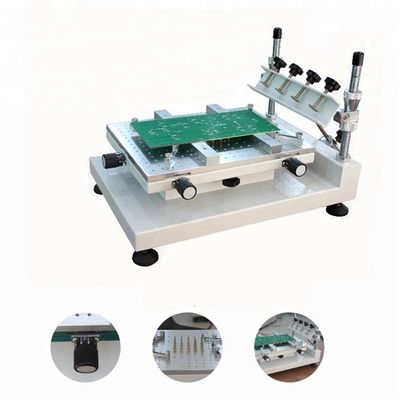

Precision manual solder printer
Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine 2
Features
1. All-aluminum frame structure design, surface oxidation treatment
2. The combined printing platen has fixed groove and PIN, easy to install and adjust, suitable for single and double panel printing.
3. With thimble and point fixed needle device, double-sided positioning printing is more accurate
4. With four-sided fine-tuning device, more precise solution to the position deviation of steel mesh hole position and PCB board
5. With the template, it can easily meet the silk screen work of 0.5mm and below foot spacing products.
6. Optional needles with various specifications (1.0mm 1.5mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm)
7. It is especially suitable for the missed printing work of the precision double-sided PCB board, and the small equipment can help you solve the big problem

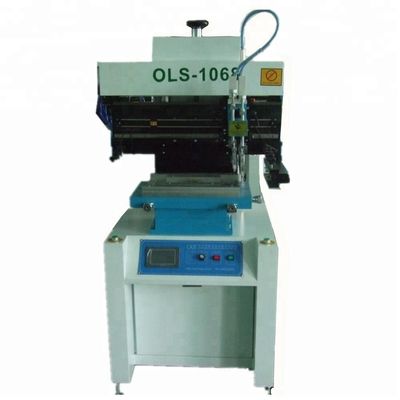

Semi automatic solder printer

0.6m semiautomatic solder paste printer
Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine 3
Manual Solder Paste Printer , Red Glue SMT Screen Printing Machine 4

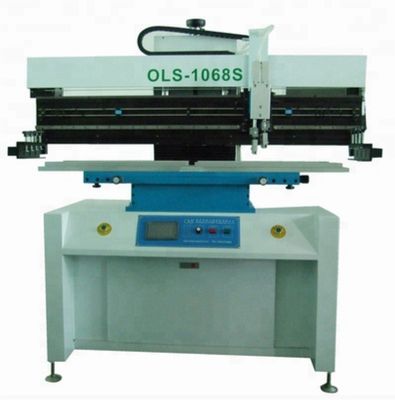

Product Name: 1.2 m light strip semi-automatic printing machine
Product model: OLS-1068S
Features:
1. Use the servo system for easy and accurate positioning.
2. Imported linear high-speed guide rail and imported speed control motor to drive the scraper seat to ensure printing accuracy.
3. The printing blade can be rotated up to 45 degrees to facilitate the cleaning and replacement of the printing stencil and scraper.
4. The blade holder can be adjusted forward and backward to select the appropriate printing position.
5. Combined printing platen with fixed groove and PIN, easy installation and adjustment, suitable for single and double panel printing.
6. The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
7. Adopt PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.
8. can be set to one-way and two-way, a variety of printing methods.
9. With automatic counting function, convenient production statistics.
10. The blade angle is adjustable, steel scraper and rubber scraper are suitable.
11. The man-machine interface has a screen saver function to protect the life of the human-machine interface.
12. With a unique programming design, the printing blade holder is easy to adjust.
13. Press speed man-machine interface display, digital control can be arbitrary.


Technical Parameters:


Type OLS-1068S
Printing table area 1300×320mm
Frame size 370 × 470mm, 1600 × 400mm
Substrate size 600×250mm, 1200×300mm
Substrate thickness 0.2-2.2mm
Platen trim Front/Back ± 10mm R/L ± 10mm
Printing accuracy ±0.02mm
Machine repeatability ±0.03mm
Minimum spacing 0.35mm
Use air pressure 4-7Kgf/Cm2
Power supply AC220V 50/60Hz 100W
Machine size L×W×H 1650×900×1650mm
Machine weight300Kg
